DFALD Section Model

Posted on January 22nd, 2014 by pmacdowell

Posted under: _Daniels Building, NADLAB

A large section-model of our proposed design for the University of Toronto Daniels Faculty of Architecture and Urban Design was commissioned for an on-site exhibition.  Challenged by an extremely fast delivery schedule, the model was an opportunity to flex our digital design and fabrication capabilities.

sectionModel_01The 7’x3′ landscape is cut on our CNC router out of laminated fiber board.

sectionModel_03The model base incorporates a internal steel frame for strength and rigidity.

sectionModel_11aModel pieces are cut on the router, cleaned, and arrayed for ease of assembly

sectionModel_08A system of interlocking joints ensures strong, accurate connections and incredibly rapid assembly.

sectionModel_13The model is pegged, clamped, and glued like a robust piece of furniture.

_MG_0320

_MG_0321The completed model on display at the University of Toronto Faculty of Architecture and Landscape Design.

DSC_1017BMany parts of the model, like the roof surface, required milling on both sides.

DSC_1024A laser-cut jig was used to accurately position the decorative fins on the north facade of the building.



Comments Off on DFALD Section Model

Flat Bar Fences

Posted on January 17th, 2014 by tberesford

Posted under: Things We Like

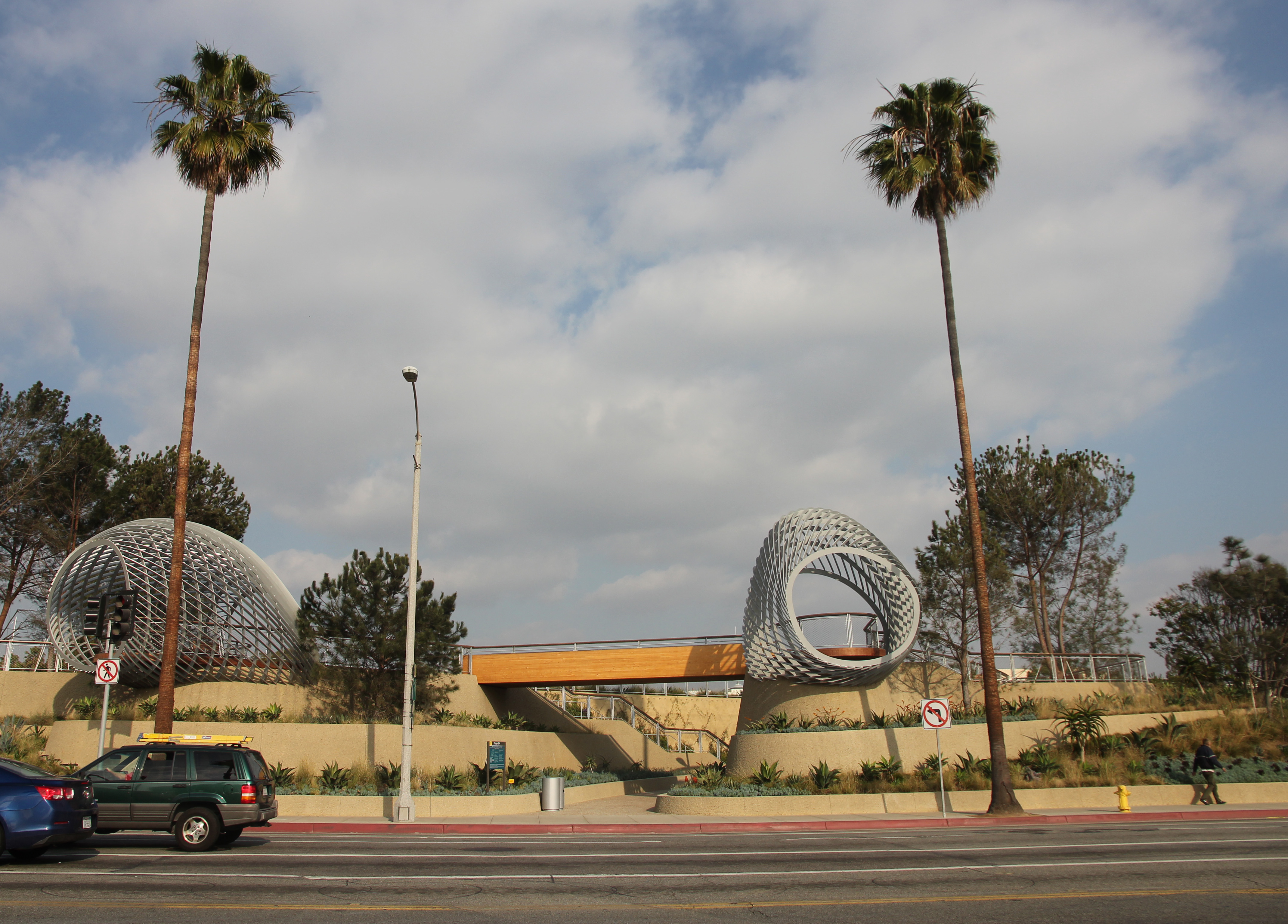

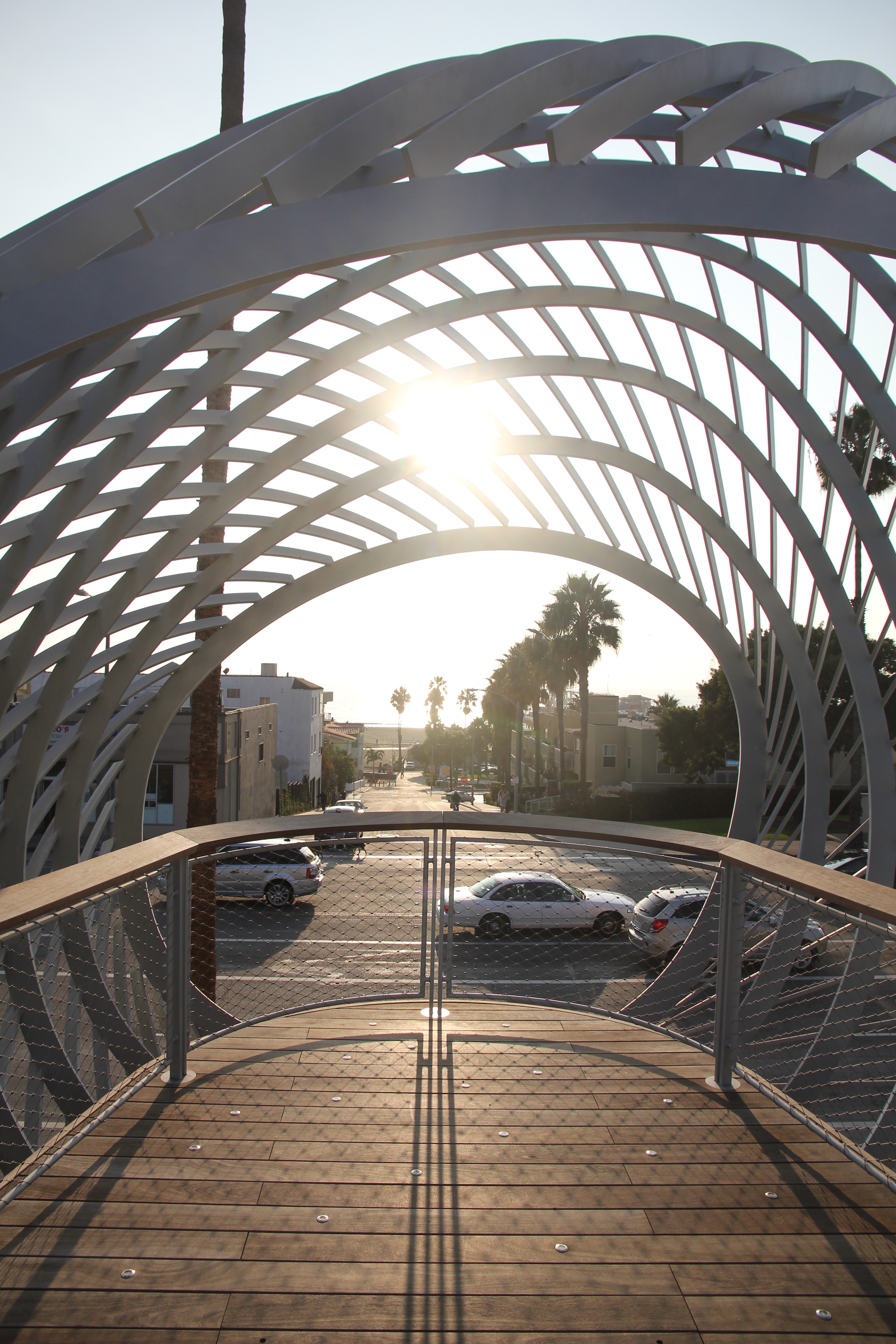

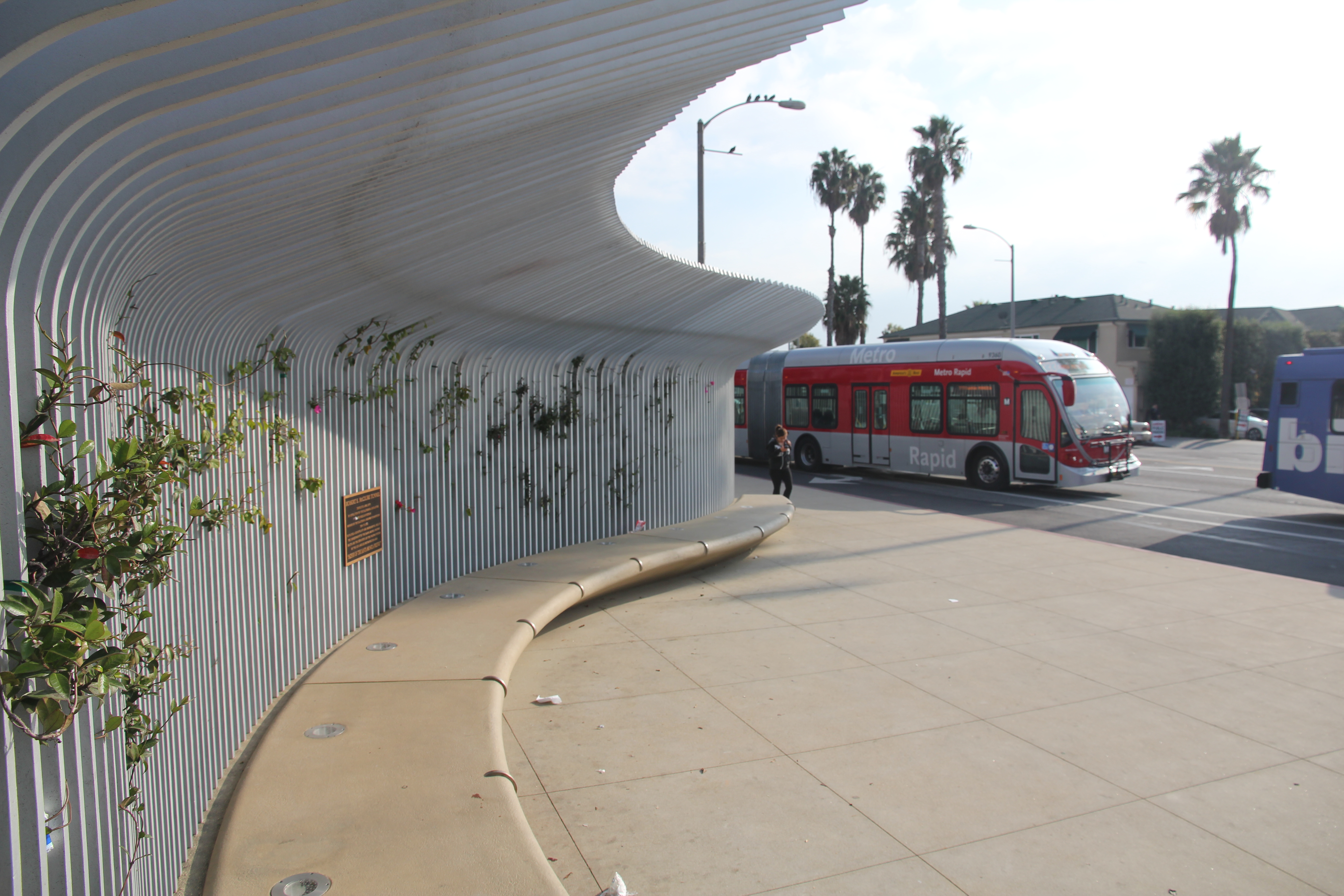

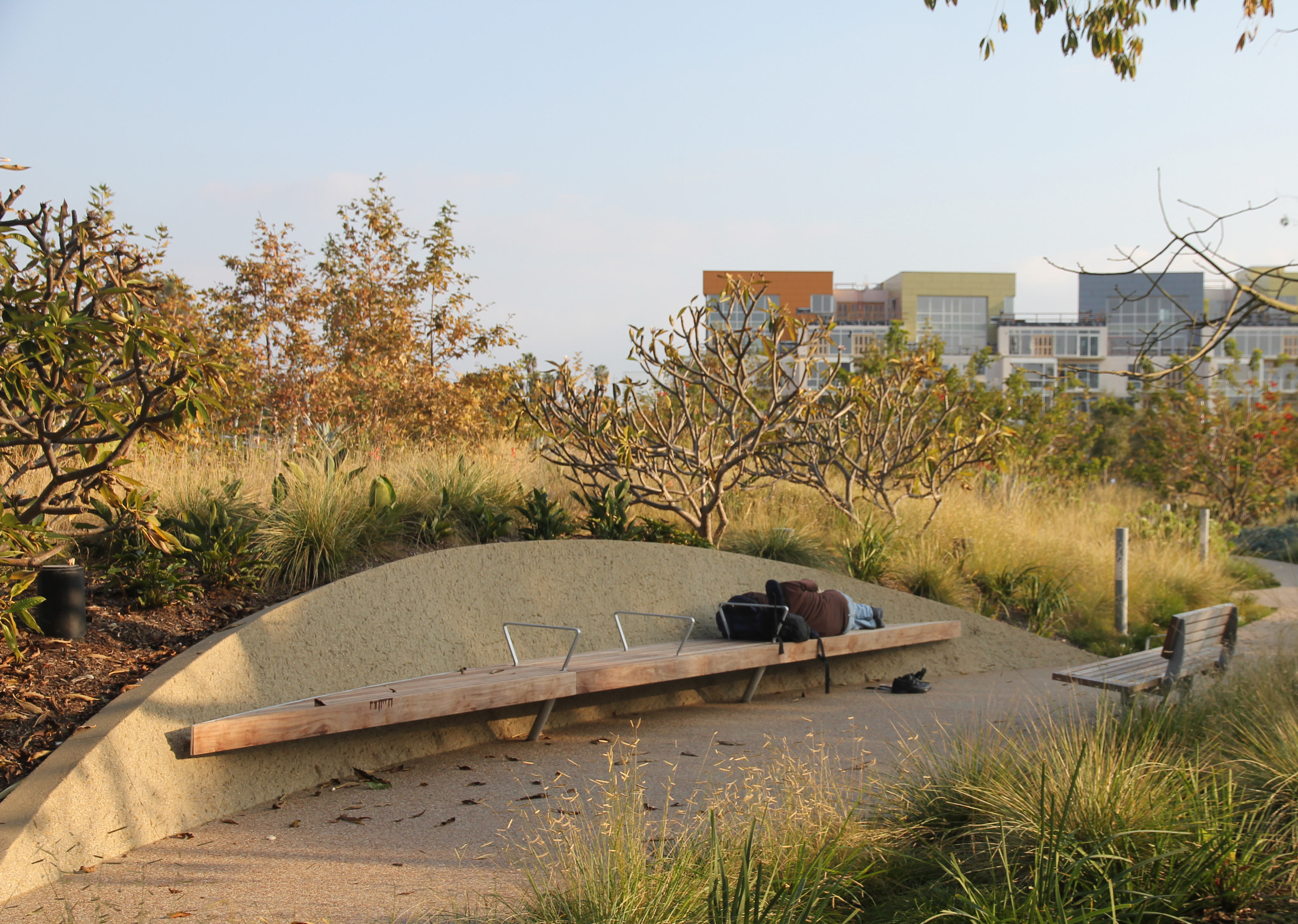

Tongva Park is an impressive new project by Field Operations at the corner of Colorado and Ocean Ave. in Santa Monica.  Besides its stunning location and diverse amenities and horticulture, it caught our eye for its implementation of welded flat bar fence and lattice enclosures.  NADAAA had ambitions to implement similar parallax and gradient effects in steel along the sides of some of the bridges during the Cornell U. and City of Ithaca Bridges Means Restriction Project. These plans ultimately did not fit the client’s goals for the project, so it was satisfying to see a similar design realized elsewhere.
